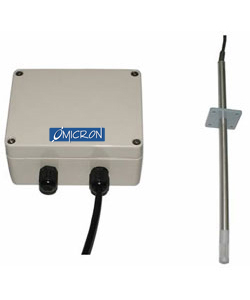

AVT4 : Remote Probe Air Velocity Transmitter

AVT4 : Remote Probe Air Velocity Transmitter
AVT4 : Remote Probe Air Velocity Transmitter
Product Code : AVT4
Brand Name : Omicron
Product Description

 AVT4 : Remote Probe Air Velocity Transmitter

Special Features :


Based on Thermal Measurement Principles

Sensitive Hot Film Sensor

Strong Pollution Tolerance

Low Airflow Angle Dependance

Wide Velocity Range with Temperature Compensation

Multiple Outputs Available

Field Jumper Selection for Velocity Ranges

Applications :
AVT4 Air Velocity Transmitters Are Used For Various Applications To Detect, Adjust And Control Air Velocity In Ventilation Measurement And Control Systems To Satisfy The Relevant Ventilation Requirements And Effectively Reduce The Energy Consumption.

Specifications :

Range: 0 - 5 / 10 / 15 / 20 m/s (On Site Adjustable)

Output: 4 - 20mA (2 Wire), 0 - 10 VDC (3 Wire) Jumper Set

Power Supply: 18 - 30 V AC / V DC

Accuracy: ±0.2 m/s + 3% of Measurement Value

Temperature Range: 0 C to 50 C (Corresponding to 4 - 20mA / 0 - 10V Output)

Sensitivity: 0.001 m/s

Temperature Accuracy: ±0.5 C

Housing Material: Fireproof ABS Enclosure, Stainless Steel Probe

Relay Output: 1 SPDT, 1 A @ 30 VDC, 0.5A @ 250VAC (Optional)

Protection: IP65, NEMA 4X

Response Time: 2 sec
